Feature:
- H.264 Encode;
- Input: 8 CH 1080P (TVI)
- Output: 1 CH VGA, 1 CH HDMI; both support up to 1080P
- Audio: 1 CH input, 1CH output;
- Support SATA port, 1 SATA support up to 4T
- 2 USB 2.0 port;
- Support various mobile remote viewing (iPhone, Windows Mobile, Black Berry, Symbian, Android, etc);
- Support different languages: English
Installation:
- Power supply in use should be Security Certificate passed. The output voltage, current and
voltage polarity should been followed under the device requested. - Do not install device where vibration is present.
- The power supply should be cut before install hard drive.
- Format the hard drive when first use.
- Keep enough room for heat output. Do not block heat output hole.
Note: Non – regulated power supply may cause damage to DVR.
Technical Specifications:

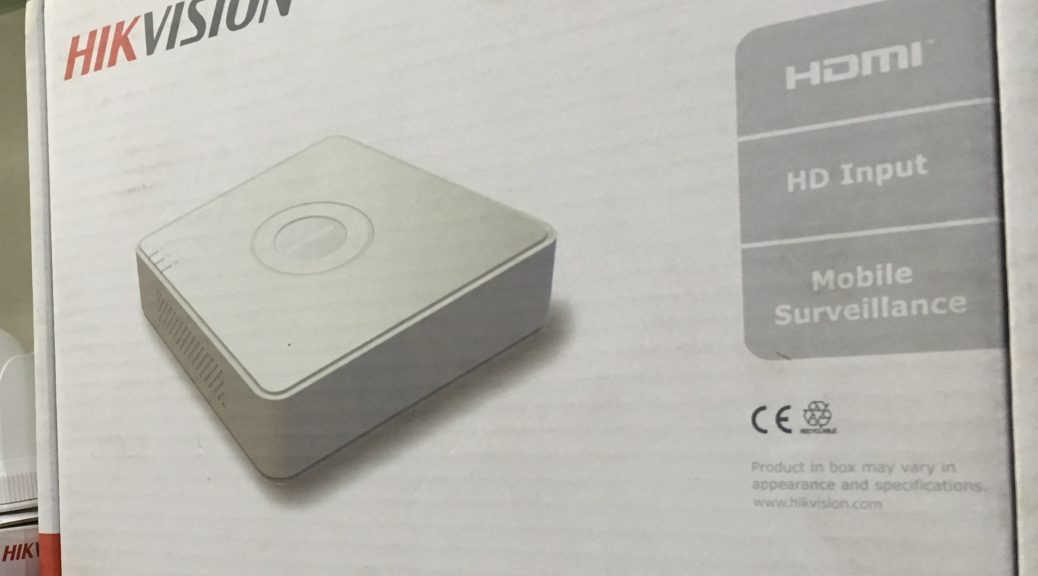

| Model No. | DS-7108HQHI-K1 | |
| System | CPU | high performance processor |
| Operation System | Linux | |
| Video | Compression | H.264 |
| Preview | 1080P | |
| Recording | 1080P@100fps | |
| Playback | 1080P@25fps | |
| Input | BNC*8 (8CH HD-TVI 1080P) | |
| Output | HDMI 1080P, VGA | |
| Audio | Compression | 8K*16bit ADPCM |
| Input | RCA*4 | |
| Output | RCA*1 | |
| Storage | HDD Port | 1 SATA port ,up to 4T |
| ESATA port | Support | |
| Backup | External storage via Network | |
| USB | QTY | 2 USB 2.0 |
| Alarm | IO Alarm | N/A |
| Video | Motion detection, Video loss , I/O | |
| Alarm Linkage | Record, Buzzer, Email, FTP upload, PTZ | |
| Network | Port | 10M/100M Ethernet |
| Protocol | TCP/IP, PPPoE, DHCP , DDNS, UPnP, SMTP, FTP | |
| Remote Control | N/A | |
| Mobile viewing | support Windows Mobile, Blackberry, iPhone, Android, Symbian |
|
| Power | Input | DC 12V- 2Amp |
